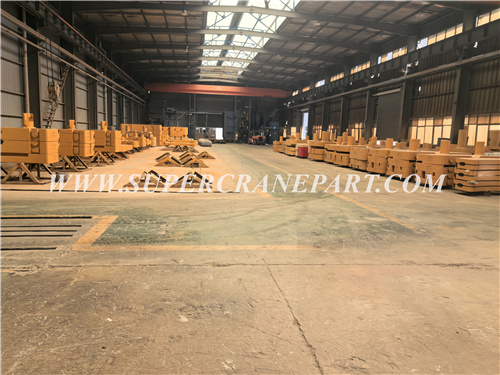

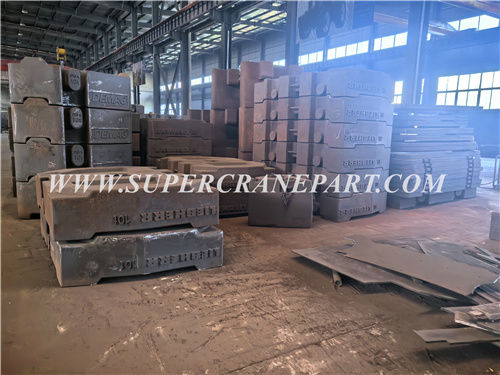

We have a factory specializing in the production of Liebhalder,Demag,TADANO,Grove,Kato crane counterweight, with 5 production workshops, is a high-quality supplier of these crane brands, products covering 90% of the world, exported to Europe, the Middle East, North America, South America, Asia, Africa and other regions

1.  Design and Specifications
The process begins with the design and specification phase.  Engineers and designers determine the required weight and shape of the counterweight based on the crane's design and the load it needs to balance.  This involves calculations and simulations to ensure that the counterweight will provide the necessary stability and support during crane operation.

2.  Pattern Making
Once the design is finalized, the next step is to create a pattern.  This pattern serves as a mold for the counterweight and is typically made from materials such as wood, plastic, or metal.  The pattern must accurately reflect the final shape and dimensions of the counterweight.  In some cases, patterns are made using computer numerical control (CNC) machines for precision.

3.  Mold Preparation
With the pattern ready, a mold is prepared.  In the sand casting process, which is commonly used for counterweights, the pattern is placed in a sand mold, and a mixture of sand, clay, and water is packed around it.  The sand mold is then hardened to retain the shape of the pattern once it is removed.

4.  Melting and Pouring
Next, cast iron is melted in a furnace at extremely high temperatures, typically around 1,200 to 1,500 degrees Celsius.  The molten iron is then poured into the prepared mold.  This step requires precision to ensure that the molten iron fills the mold cavity completely and evenly, avoiding defects such as air bubbles or incomplete filling.

5.  Cooling and Solidification
After pouring, the molten iron is allowed to cool and solidify.  This cooling process can take several hours or even days, depending on the size and complexity of the counterweight.  During this time, the iron hardens and takes the shape of the mold.

6.  Mold Removal and Cleaning

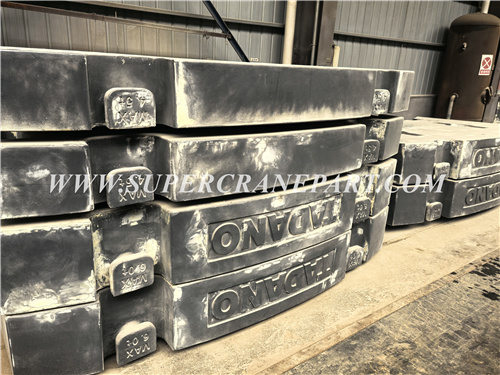

Once the iron has cooled and solidified, the mold is removed to reveal the cast iron counterweight.  The counterweight is then cleaned to remove any remaining sand or debris from the casting process.  This cleaning might involve sandblasting or other methods to ensure a smooth surface.

7.  Machining and Finishing
The rough cast iron counterweight is then subjected to machining processes to achieve the final dimensions and surface finish.  This step includes grinding, milling, and drilling as required.  The goal is to ensure that the counterweight meets the precise specifications needed for its intended use.

8.  Quality Control
Before the counterweight is shipped, it undergoes rigorous quality control tests.  These tests check for structural integrity, weight accuracy, and surface quality.  Ensuring that the counterweight meets all the specified standards is crucial for the safe and efficient operation of the crane.

9.  Painting and Coating

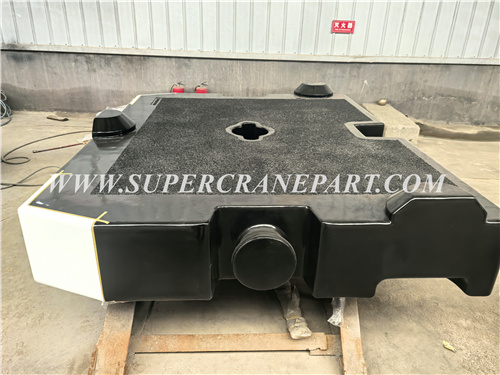

To protect the cast iron counterweight from corrosion and environmental damage, it is often painted or coated.  The coating process involves applying a primer and paint to the surface of the counterweight, providing both aesthetic appeal and durability.

10.  Final Inspection and Shipping
Finally, the counterweight undergoes a final inspection to ensure that it meets all quality standards and specifications.  Once approved, it is prepared for shipping to its destination, where it will be installed on a crane and put into operation.

Ensuring the quality of cast iron counterweights for cranes is crucial for the safety and efficiency of lifting operations. These counterweights are integral to the stability and performance of cranes, and their failure can have serious consequences. Therefore, a comprehensive quality control process is essential in manufacturing cast iron counterweights

If you would like more information about crane weights, please contact Email: hotsales1@hn-kingway.com
